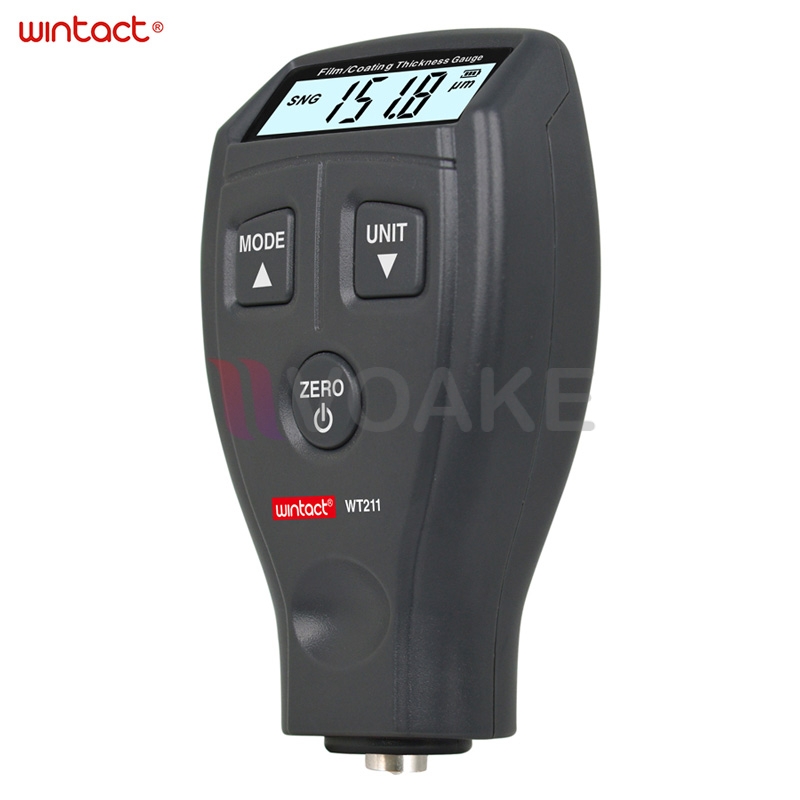

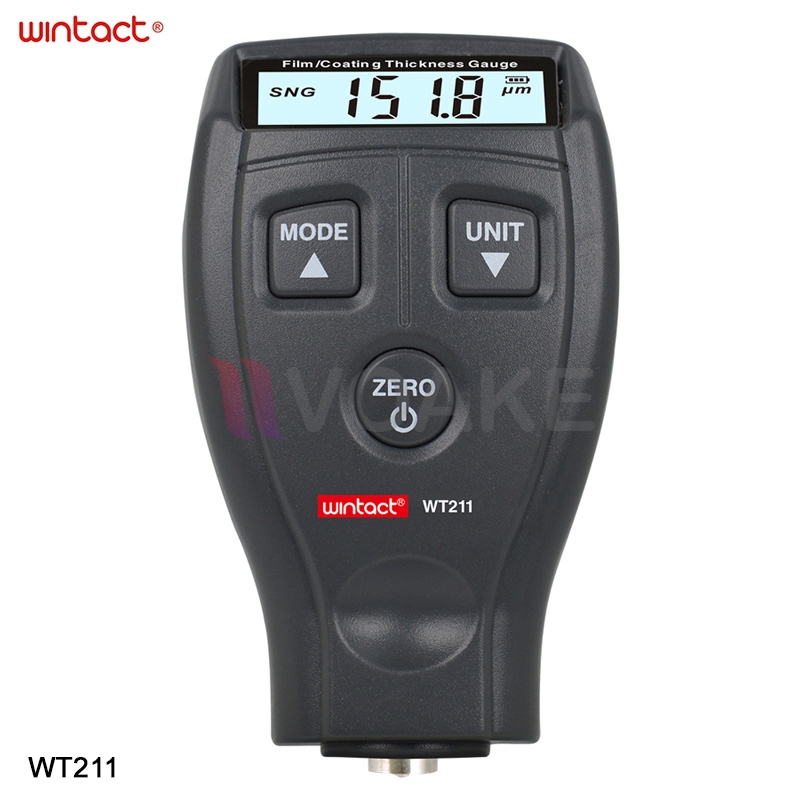

WINTACT WT211 เครื่องวัดความหนาสี Coating Thickness Gauge

฿3,950.00

หรือ
QR Code

โหมดการสอบเทียบแบบ basic, zero calibration
ปิดเครื่องอัตโนม้ติเมื่อไม่ได้ใช้งาน
ช่วงการวัดความหนาสี Measuring Range 0~1500μm
ยี่ห้อสินค้า Wintact รุ่น WT211

ยี่ห้อสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: WT211 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์
ไฟล์ข้อมูลสำหรับดาวน์โหลด

รายละเอียดเพิ่มเติม

ข้อมูลทางเทคนิคของเครื่องวัดความหนา WINTACT WT211
ช่วงการวัดความหนาสี Measuring Range 0~1500μm หรือ 0~59mil หรือ 0~1.5mm
ความละเอียด Resolution ( 0.1μm(<100μm),1μm(≥100μm)) หรือ 0.1mil/0.001mm
ความแม่นยำ Accuracy ±5μm
Min. diameter of substrate φ12mm
Min. thickness of substrate 0.5mm
Min. curvature radius of convex substrate 2mm
Min. curvature radius of concave substrate 11mm
Min. diameter of non-magneticsubstrate 50mm
Min. thickness of non-magnetic substrate 0.5mm
แหล่งพลังงาน 2*1.5V AAA batteries
Overall dimensions 61.98*30.57*107.99 มิลลิเมตร
น้ำหนัก 63.98 กรัม

คุณสมบัติ
ยี่ห้อสินค้า Wintact รุ่น WT211
โหมดการสอบเทียบแบบ basic, zero calibration
ปิดเครื่องอัตโนม้ติเมื่อไม่ได้ใช้งาน
เปลี่ยนหน่วยการวัดแบบ Metric/imperial
สามารถวัดความหนาสีแบบ Ferrous และ Non-Ferrous
โหมดการวัดแบบ Single และ Continuous
จอแสดงผลแบบ LCD พร้อม Backlight
Automatically identifying the non-magnetic metal substrate or magnetic metal substrate
