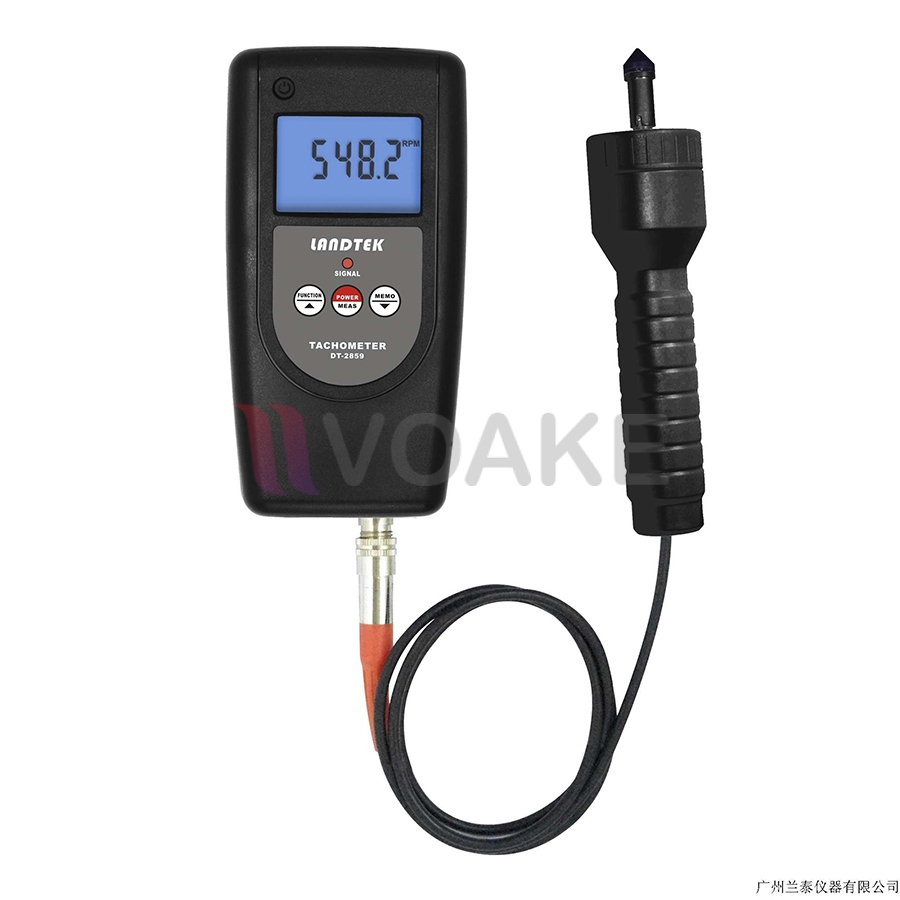

LANDTEK รุ่น DT-2859 เครื่องวัดความเร็วรอบ Tachometer

หรือ
QR Code

Laser 2.5 ถึง 99,999 r/min
Contact 0.5 ถึง 19,999 r/min
Surface Speed 0.05 ถึง 1999.9 m/min หรือ 0.2 ถึง 6560 ft/min
Frequency 0.04 ถึง 1666.65 Hz
ยี่ห้อสินค้า LANDTEK รุ่น DT-2859

ยี่ห้อสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: DT-2859 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 7 ถึง 14 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์
ไฟล์ข้อมูลสำหรับดาวน์โหลด

รายละเอียดเพิ่มเติม

ข้อมูลทางเทคนิคเครื่องวัดความเร็วรอบ LANDTEK DT-2859
ช่วงการวัด
Laser 2.5 ถึง 99,999 r/min
Contact 0.5 ถึง 19,999 r/min
Surface Speed 0.05 ถึง 1999.9 m/min หรือ 0.2 ถึง 6560 ft/min
Frequency 0.04 ถึง 1666.65 Hz

Accuracy ±(0.05%n+1d)
Sampling Time 1.0s(Over 60 r/min)
Test Range Select Automation
Memory Max Value /Min Value /Last Value
Time Base Quartz Crystal
Laser Tach 50~250 mm/2~10 inch(Typical)
Detecting Distance Max 600 mm/24 inch
Power Consumption 80 mA (Testing)
Operating Temperature 0~50ºC(32~122ºF)
Power Supply 4×1.5V AAA Size (UM-4) Battery
ขนาดเครื่อง 140x72x34 mm
น้ำหนัก 245g

คุณสมบัติ
ยี่ห้อสินค้า LANDTEK รุ่น DT-2859
Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ). It can also be applied to the measurement of Frequency, Cycle, Pulse Times, Pulse Distance, User-defined Pulse Distance, etc.
Digital display with no guessing errors.
Wide measuring range and high resolution.
The last value / max. value / min. value will be automatically stored in memory.
The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
Use USB data output to connect with PC.
Provide Bluetooth data output choice.

รีวิว

ยังไม่มีบทวิจารณ์

มาเป็นคนแรกที่วิจารณ์ “LANDTEK รุ่น DT-2859 เครื่องวัดความเร็วรอบ Tachometer”

DATA SHEET

Download

USER MANUAL

Download
