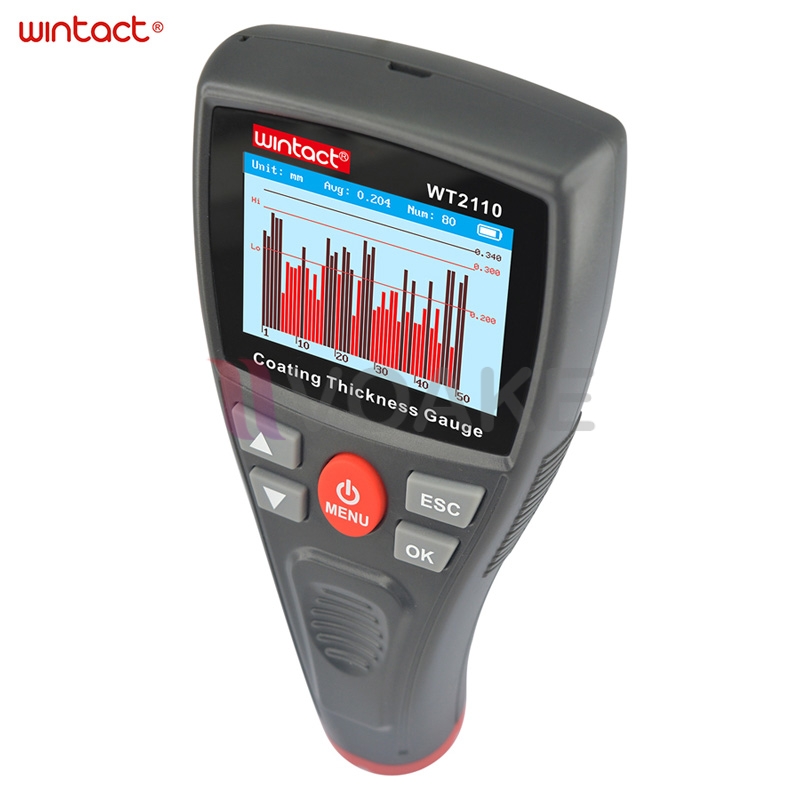

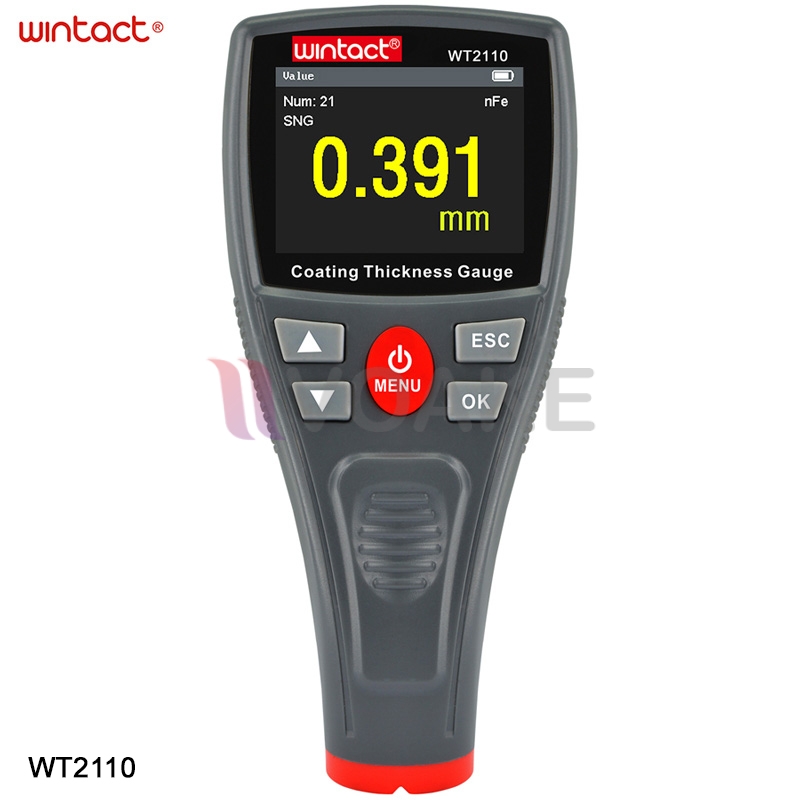

WINTACT WT2110 เครื่องวัดความหนาสี Coating Thickness Gauge

฿5,290.00

หรือ
QR Code

โหมดการสอบเทียบแบบ basic, offset, zero calibration
ปิดเครื่องอัตโนม้ติเมื่อไม่ได้ใช้งาน
เปลี่ยนหน่วยการวัดแบบ Metric/imperial
ยี่ห้อสินค้า Wintact รุ่น WT2110

ยี่ห้อสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: WT2110 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์
ไฟล์ข้อมูลสำหรับดาวน์โหลด

รายละเอียดเพิ่มเติม

ข้อมูลทางเทคนิคของเครื่องวัดความหนา WINTACT WT2110
ช่วงการวัดความหนาสี Measuring Range 0~1500μm หรือ 0~59mil หรือ 0~1.5mm
ความละเอียด Resolution ( 0.1μm(<100μm),1μm(≥100μm)) หรือ 0.1mil/0.001mm
ความแม่นยำ Accuracy ±5μm
Min. diameter of magnetic metal substrate 12mm
Min. thickness of magnetic metal substrate 0.5mm
Min. radius of curvature for magnetic convex substrate 2mm
Min. radius of curvature for magnetic concave substrate 11mm
Min. diameter of non-magnetic metal substrate 50mm
Min. thickness of non- magnetic metal substrate 0.5mm
แบตเตอรี่ 3×1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter
ขนาดเครื่อง 70.30*38.6*149.59mm
น้ำหนัก 136.9 กรัม

คุณสมบัติ
ยี่ห้อสินค้า Wintact รุ่น WT2110
โหมดการสอบเทียบแบบ basic, offset, zero calibration
ปิดเครื่องอัตโนม้ติเมื่อไม่ได้ใช้งาน
เปลี่ยนหน่วยการวัดแบบ Metric/imperial
จอแสดงผลแบบ color-screen HD
สามารถวัดความหนาสีแบบ Ferrous และ Non-Ferrous
โหมดการวัดแบบ Single และ Continuous
Screen rotation, charge protection, multi-interface displays,screen brightness selection.

รีวิว

ยังไม่มีบทวิจารณ์

มาเป็นคนแรกที่วิจารณ์ “WINTACT WT2110 เครื่องวัดความหนาสี Coating Thickness Gauge”

USER MANUAL

Download
