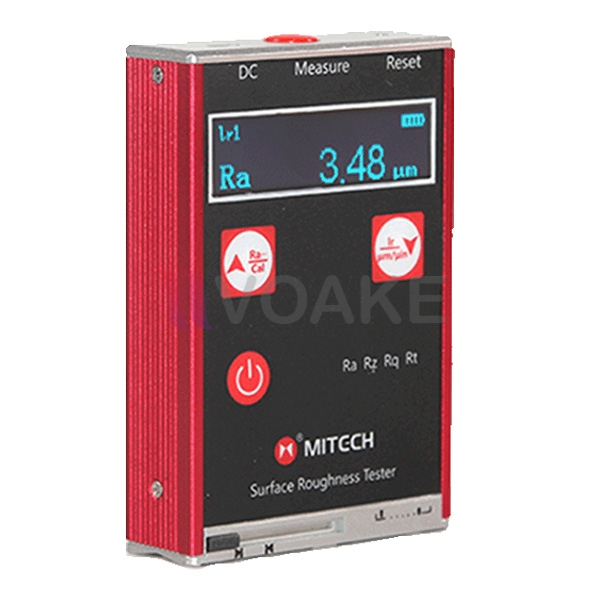

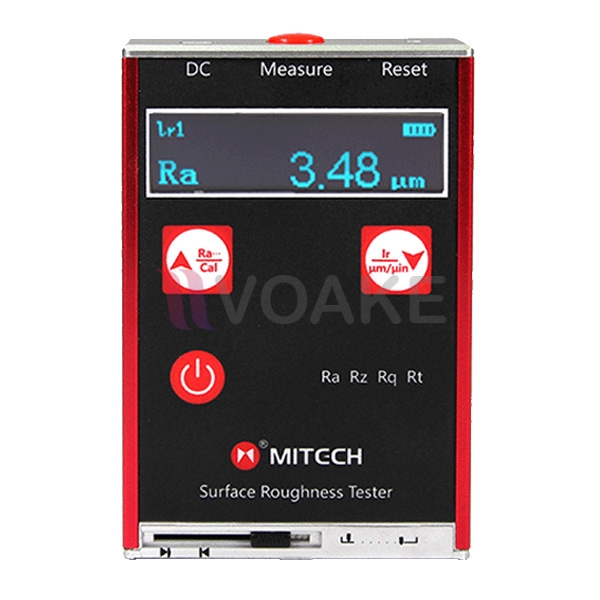

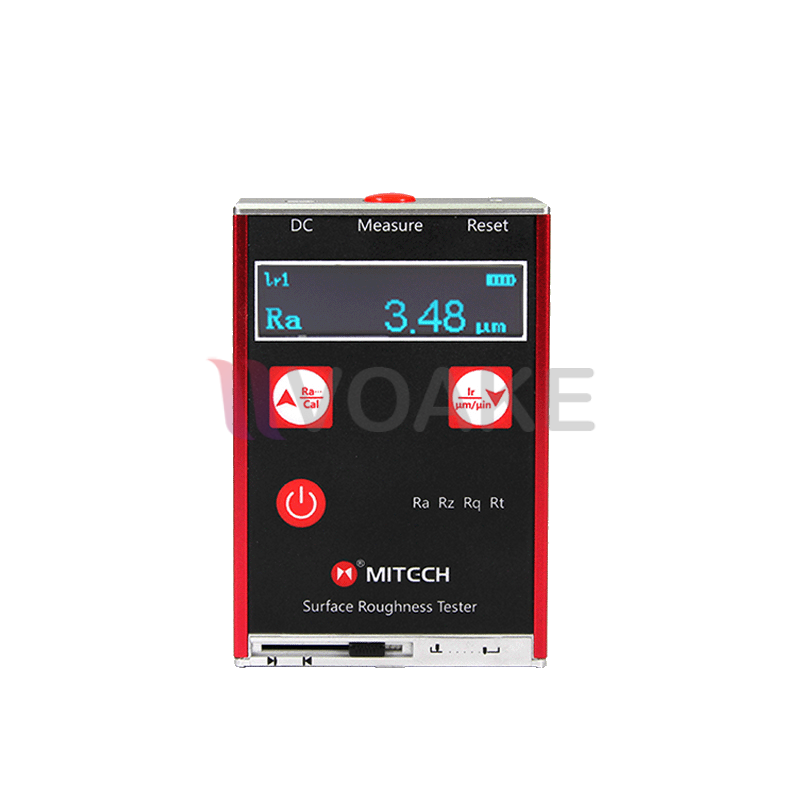

เครื่องวัดความเรียบผิว MITECH MR100 Surface Roughness Tester

หรือ
QR Code

ยี่ห้อสินค้า MITECH รุ่น MR100
ช่วงการวัด (μm) Ra: 0.05 ~ 10.0, Rz: 0.1 ~ 50
Access length(mm) 1.25, 4.0, 5.0
Lr(mm) 0.25, 0.80, 2.5
พารามิเตอร์การวัด (μm) Ra, Rz, Rq, Rt.
Indication error ±15%

ยี่ห้อสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: MR100 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 7 ถึง 14 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์
ไฟล์ข้อมูลสำหรับดาวน์โหลด

รายละเอียดเพิ่มเติม

คุณสมบัติของ MITECH MR100 เครื่องวัดความเรียบผิว
128×32 OLED dot matrix LCD displays clearly without backlight.
Using DSP chip execute control and data processing.
Built-in lithium polymer rechargeable battery and charging protection circuit.
Mini-USB charging interface, available for phone charger.
Measurement parameters: Ra, Rq, Rz, Rt.
Using high-precision piezoelectric crystal transducer.
Mechatronics design, smaller and lighter.
Widely used in a variety of metal and non-metallic surface roughness detection
Set the sensor probe protection door, after the end of the measurement should be closed to protect the door to.effectively protect the sensor probe
Meet the relevant standards at home and abroad
Can manually select the sampling length
ยี่ห้อสินค้า MITECH รุ่น MR100

ข้อมูลทางเทคนิค
น้ำหนัก 200 กรัม
ขนาดเครื่อง 105 mm×70 mm×24 mm
Charger DC 5V, 500mAh
แบตเตอรี่ 3.7V Lithium-polymer battery
Sensor head pressure ≤0.5N
Measuring force and change rate ≤0.016N, ≤800N/m
Probe tip’s arc radius and angle 10.0±2.5 μm, 90°
Indication variation <12%
Indication error ±15%
ช่วงการวัด (μm) Ra: 0.05 ~ 10.0, Rz: 0.1 ~ 50
Access length(mm) 1.25, 4.0, 5.0
Lr(mm) 0.25, 0.80, 2.5
Stroke length(mm) 6
พารามิเตอร์การวัด (μm) Ra, Rz, Rq, Rt.
