รายละเอียดเพิ่มเติม
ข้อมูลทางเทคนิคของเครื่องวัดความแข็งอลูมิเนียม LANDTEK HM-934-1+
ช่วงการวัด 0~100Hba,Amount to 25~135HBW
ความละเอียด 0.1HBa
ความถูกต้องแม่นยำ ±1Hba
Brinell Hardness √
Vickers Hardness √
Wenster Hardness √
Rockwell hardness √
Maximum Hold √
Average Calculation √
Operating Condition Temperature:0~50ºC Humidity:<80%RH
แหล่งพลังงาน 2×1.5V AAA(UM-4)Battery
ขนาดเครื่อง 170x63x82mm
น้ำหนัก 390g(Not Including Batteries)
ภายในกล่องประกอบด้วย
Main Unit
2 Pins
2 Standard Blocks
Screw Driver
Spanner
Carrying Case
Operation Manual
Bluetooth Data Adapter with Software (ต้องซื้อเพิ่ม)
คุณสมบัติ

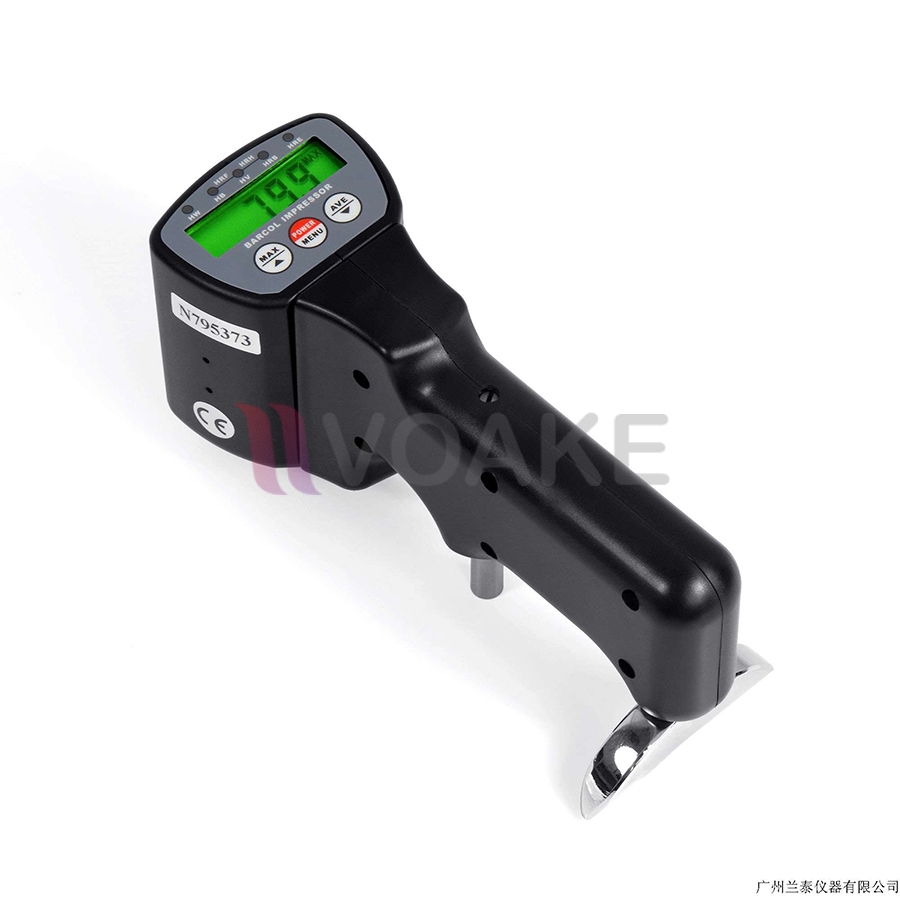

ยี่ห้อสินค้า LANDTEK รุ่น HM-934-1+
A digital indentation hardness tester, is the latest design and development of our company.
It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.
It is with good stability, convenient calibration, and high accuracy of detection.
Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.
Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~135HB.
No need to support. The hardness tester is only tested on one side of the sample without support.
Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
With the maximum hold function, hold the maximum hardness value during measurement.
With the function of calculating the average value, and the average value of the 29 sets of data are calculated at most.
Provide Bluetooth data output choice.
