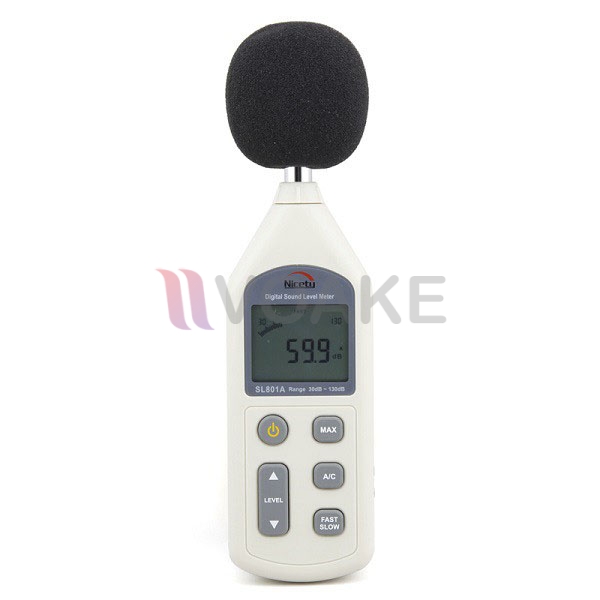

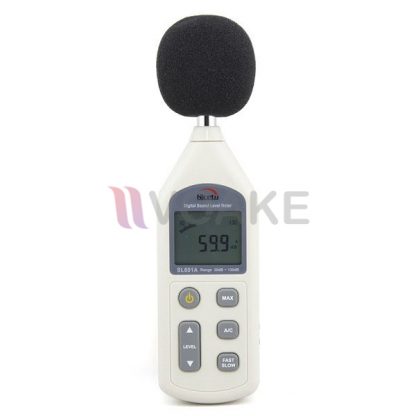

เครื่องวัดระดับเสียง SL801A Sound Level Meter

฿1,990.00

หรือ
QR Code

ยี่ห้อ Nicety รุ่น SL801A
ความแม่นยำ (Accuracy): 1.5dB (under reference conditions)
ย่านการวัด (Measuring Level): 30-130dB (A)/35-130dB
(C)
ตรงตามมาตรฐาน IEC 651 TYPE 2 และ ANSI 1.4 TYPE 2.
ย่านความถี่ (Frequency Range): 31.5Hz to 8.5KHz
การถ่วงน้ำหนักความถี่ A และ C

ยี่ห้อสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: SL801A หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์

รายละเอียดเพิ่มเติม

คุณสมบัติของ เครื่องวัดระดับเสียง SL801A
ตรงตามมาตรฐาน IEC 651 TYPE 2 และ  ANSI 1.4 TYPE 2.
ช่วงการวัดเสียง 30 ถึง 130 เดซิเบล
ความถูกต้องแม่นยำ (Accuracy) ± 1.5dB.
มี Windscreen เพื่อป้องกันสัญญาณรบกวน
การถ่วงน้ำหนักความถี่ A และ C
สัญญาณอนาล็อกเอาท์พุท  AC และ DC
จอแสดงผลแบบ LCD ขนาดใหญ่
ปิดเครื่องอัตโนมัติเมื่อไม่ใช้งาน
Fast and Slow dynamic characteristic modes
ยี่ห้อ Nicety รุ่น SL801A

ข้อมูลทางเทคนิค
ความแม่นยำ (Accuracy): 1.5dB (under reference conditions)
ย่านการวัด (Measuring Level): 30-130dB (A)/35-130dB (C)
ย่านความถี่ (Frequency Range): 31.5Hz to 8.5KHz
Linearity Range: 50dB/100dB
Digital Display: 5 digits
Resolution: 0.1dB
Bar Graph: 50 dB
scale at 1 dB step for monitoring current sound pressure level display
Overload Indication: OVER/UNDER
Frequency Weighting: A and C
Level Ranges: 30-80dB, 50-100dB, 60-110dB, 80-130dB
Self Calibration Time: 3sec
Sampling Rate: 20 times/seconds

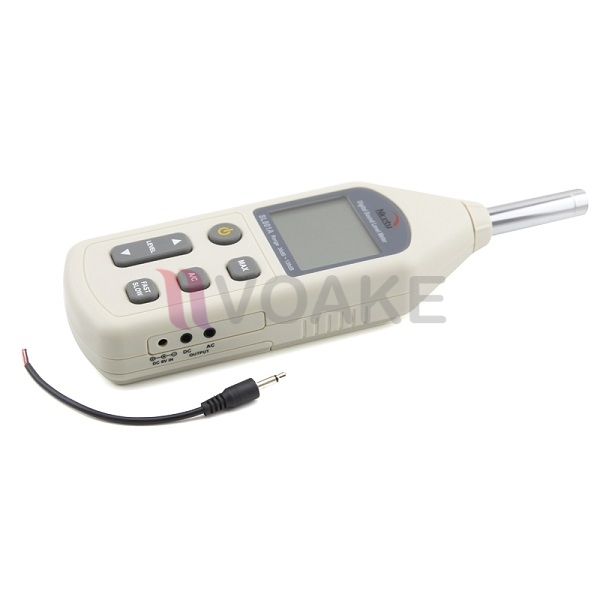

AC Signal Output: 0.707Vrms/ full bar graph, output impedance is about 600ohm
DC Signal Output: 10mV/dB,output impedance is about 100ohm
Dynamic Characteristic: FAST (high speed)/SLOW (low speed)

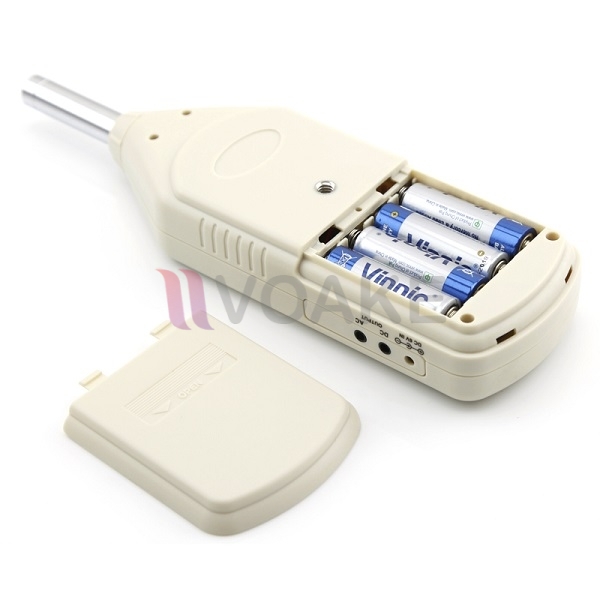

แหล่งพลังงาน 4x AA 1.5V battery or DC 6V 100mA (not include)
ขนาดไมโครโฟน 1/2″ Electrinic Condenser microphone
ขนาดเครื่อง 256 x 70 x 35 มิลลิเมตร
น้ำหนัก 238 กรัม

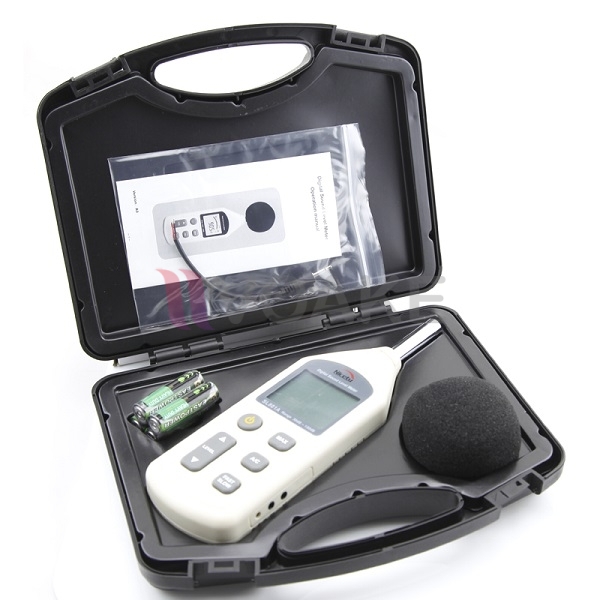

ภายในกล่องประกอบด้วย
1 *  เครื่องวัดเสียง
1 * กันลม (Sponge Ball)
1 * คู่มือการใช้งาน
1 * สายสัญญาณ DC 6V
