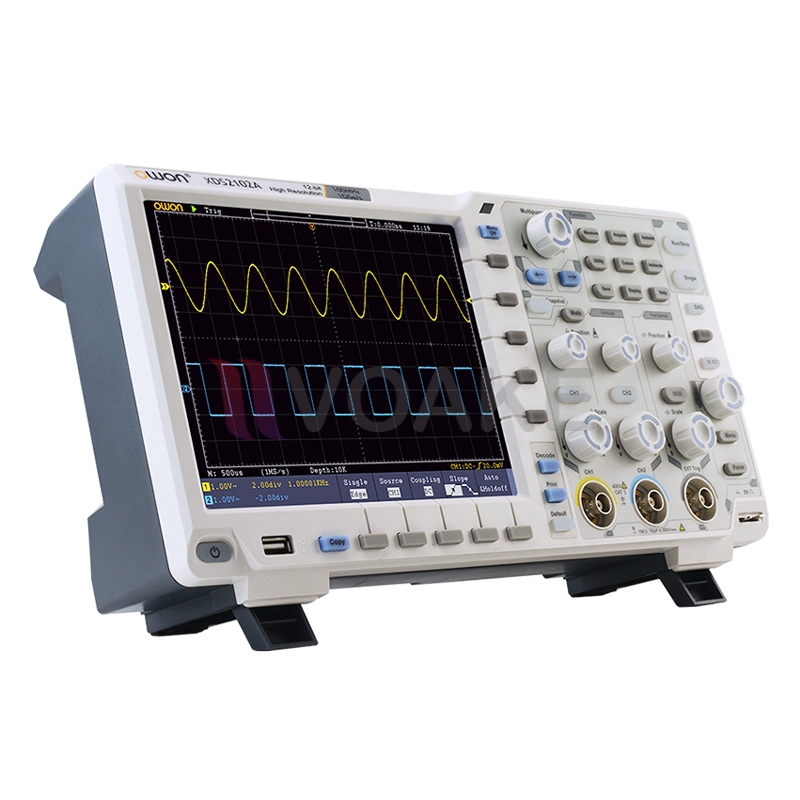

OWON XDS2102A ออสซิลโลสโคป High Resolution 12 bits (100MHz)

หรือ
QR Code

ยี่ห้อสินค้า OWON รุ่น XDS2102A
Vertical Resolution (A/D) 12 bits
Bandwidth 100MHz
Sample Rate 1GS/s (8 bits)
Channel 2 + 1 (external)
Record length 20M

ยี่ห้อสินค้า (Brand) ของHong Kong
รหัสสินค้า: XDS2102A หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์
ไฟล์ข้อมูลสำหรับดาวน์โหลด

รายละเอียดเพิ่มเติม

รายละเอียดของออสซิลโลสโคป OWON XDS2102A
12-bit high resolution ADC, restoring the waveform detail fully
20M record length, and 55,000 wfms/s waveform refresh rate
Low background noise, vertical sensitivity in 1 mV/div – 10 V/div
multi- trigger, and bus decoding function
SCPI, and LabVIEW supported
Ultra-thin body-design, less space accommodation
Multi-interface integration – USB host, USB device, USB port for PictBridge, LAN, AUX, and more
VGA port – better solution for video expansion, and teaching demonstration
8 inch 800 x 600 high resolution LCD
ยี่ห้อสินค้า OWON รุ่น XDS2102A

ข้อมูลทางเทคนิค
Bandwidth 100MHz
Sample Rate 1GS/s (8 bits)
500MS/s (12 bits)
Vertical Resolution (A/D) 12 bits
Record length 20M
Waveform Refresh Rate 55,000 wfms/s
Horizontal Scale (s/div) 2ns/div – 1000s/div, step by 1~2~5
Rise Time (at input, typical) ≤3.5ns
Channel 2 + 1 (external)
Display 8″ color LCD, 800 x 600 pixels
Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MΩ ≤ 300Vrms
DC Accuracy average≥16:±(3% reading + 0.05 div) for △V
Probe Attenuation Factor 0.001X – 1000X, step by 1 – 2 – 5
LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
