คำอธิบาย

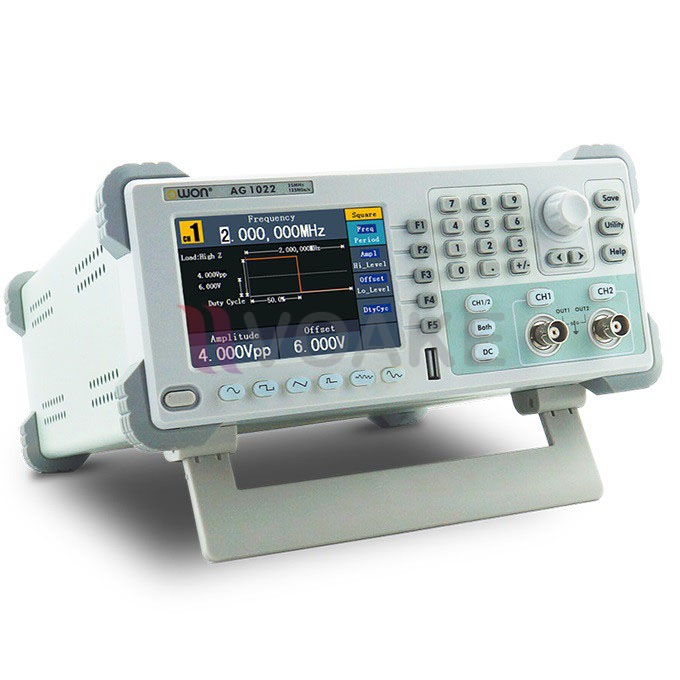

คุณสมบัติของ OWON AG Series Arbitrary Waveform Generator และ Function Generator
แชนแนลแบบดูอัล
ใช้เทคโนโลยี DDS
ความถี่เอาพุท 10MHz, 25MHz, 50MHz, 60MHz
Sample Rate 125MS/s, 250MS/s
5 ชนิดรูปคลื่นมาตรฐาน และ 45 built-in arbitrary waveforms
รองรับ SCPI
Modulation functions AM, FM, PM, FSK, PWM, Sweep, และ Burst
จอแสดงผลแบบ TFT LCD ขนาด 4 นิ้ว (480 × 320 พิกเซล)
ข้อมูลทางเทคนิค
| รุ่น | AG1012 | AG1012F | AG1022 | AG1022F | AG2052F | AG2062F | |||||||||
| แชนแนล | dual | ||||||||||||||
| Frequency Output | 10MHz | 25MHz | 50MHz | 60MHz | |||||||||||
| Sample Rate | 125MS/s | 250MS/s | |||||||||||||
| Vertical Resolution | 14 bits | ||||||||||||||
| Waveform | |||||||||||||||
| Standard Waveform | Sine, Square, Pulse, Ramp, and Noise | ||||||||||||||
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform |
||||||||||||||
| Frequency (resolution 1μHz) | |||||||||||||||
| Sine | 1μHz – 10MHz | 1μHz – 25MHz | 1μHz – 50MHz | 1μHz – 60MHz | |||||||||||
| Square | 1μHz – 5MHz | 1μHz – 25MHz | 1μHz – 30MHz | ||||||||||||
| Pulse | 1μHz – 5MHz | 1μHz – 10MHz | |||||||||||||
| Ramp | 1μHz – 1MHz | ||||||||||||||
| Noise | 25MHz (-3dB) (typical) | ||||||||||||||
| Arb | 1μHz – 10MHz | ||||||||||||||
| Amplitude | |||||||||||||||
| Amplitude | 1mVpp – 10Vpp (50Ω), 1mVpp – 20Vpp (high impedance) | ||||||||||||||
| Resolution | 1m Vpp or 4 digits | ||||||||||||||
| DC Offset Range (AD+DC) | ±5V (50Ω), ±10V (high impedance) | ||||||||||||||
| DC Offset Range Resolution | 1mV or 4 digits | ||||||||||||||
| Load Impedance | 50Ω (typical) | ||||||||||||||
| รุ่น | AG1012 | AG1022 | AG1012F | AG1022F | AG2052F | AG2062F | |||||||||
| Arbitrary Waveform | |||||||||||||||
| Wave Length | 2 pts to 8K pts | 2 pts to 1M pts | |||||||||||||
| Non-volatile Memory | 64M byte | ||||||||||||||
| Modulation | |||||||||||||||
| Modulation Waveform | / | AM, FM, PM, FSK, Sweep, and Burst | AM, FM, PM, FSK, PWM, Sweep, and Burst |
||||||||||||
| Modulation Frequency | / | 2mHz to 20.00KHz (FSK 1μHz – 100KHz) | |||||||||||||
| Cymometer | |||||||||||||||
| Function | / | Frequency Period, +Width, -Width, +Duty, and -Duty | |||||||||||||
| Frequency Range | / | 100mHz ~ 200MHz | |||||||||||||
| Frequency Resolution | / | 6 digits/s | |||||||||||||
| Power Amplifier Module (optional) | |||||||||||||||
| Input Impedance | 50 kΩ | Output Impedance | <2 Ω | ||||||||||||
| Max Input Voltage | 2.2Vpp | Gain | X 10 | ||||||||||||
| Max Output Voltage | 22 Vpp | Offset | <7% | ||||||||||||
| Output Slew Rate | 10V/us | Bandwidth (at full power) |
DC 100kHz | ||||||||||||
| Max Output Power | 10 W | ||||||||||||||
| Input / Output | |||||||||||||||
| Display | 4 inch (480 × 320 pixels) LCD | ||||||||||||||
| Type | external reference clock input / output | counter external modulation input / output, external trigger input / output, external reference clock input / output |
|||||||||||||
| Communication Interface | USB host, and USB device, RS232 (option) | ||||||||||||||
| Mechanical | |||||||||||||||
| ขนาดเครื่อง | 235 × 110 × 295 (mm) | ||||||||||||||
| น้ำหนัก | 3.00 kg | ||||||||||||||
