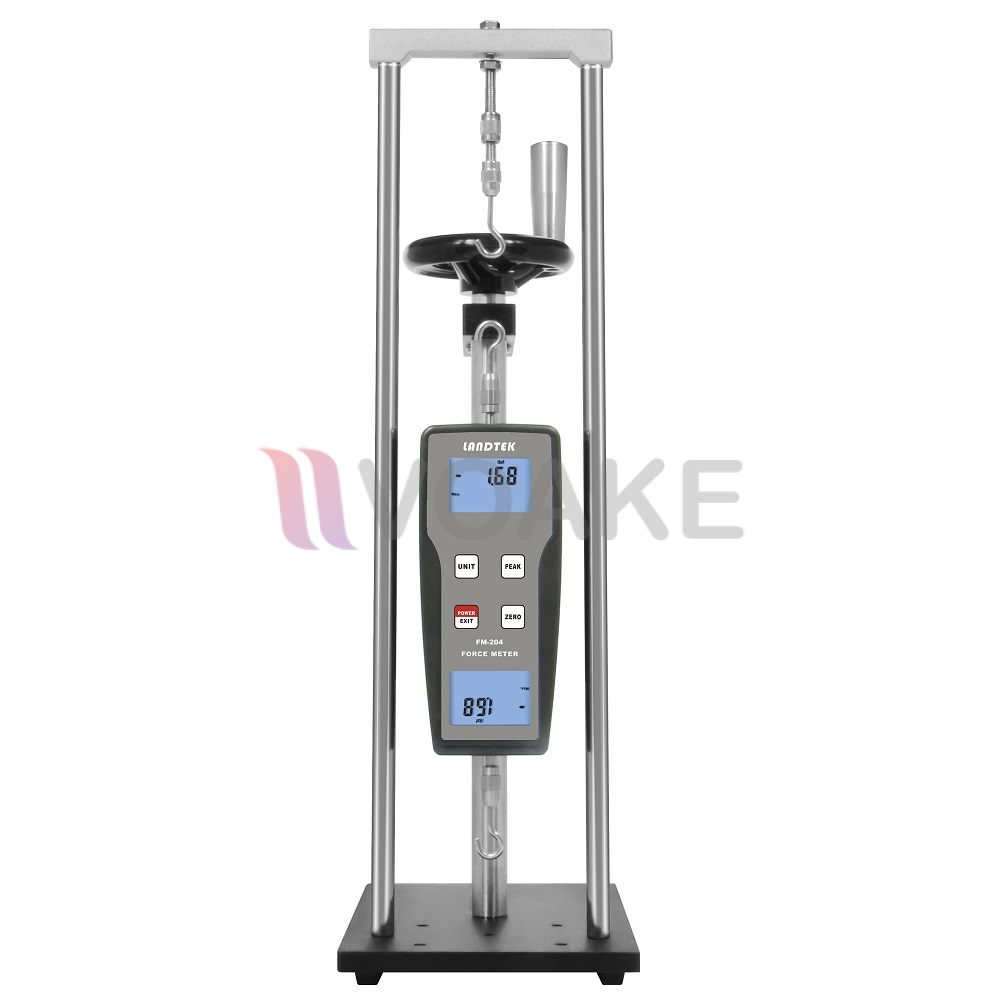

This support, being combined with a force gauge, can measure the pushing or pulling force in vertical or horizontal direction.
3. PUSHING OR PULLING FORCE MEASUREMENTS IN VERTICAL POSITION
3-1 Put the support vertically. Hold the force gauge vertically with the sensing end
upward. With M3 screws through the ϕ3 Hole to connect the force gauge on the
3-2 Connect the Hook on the Fixing Beam through the ϕ6 Hole.
3-3 Connect the measured connector between the sensing end of force gauge and the

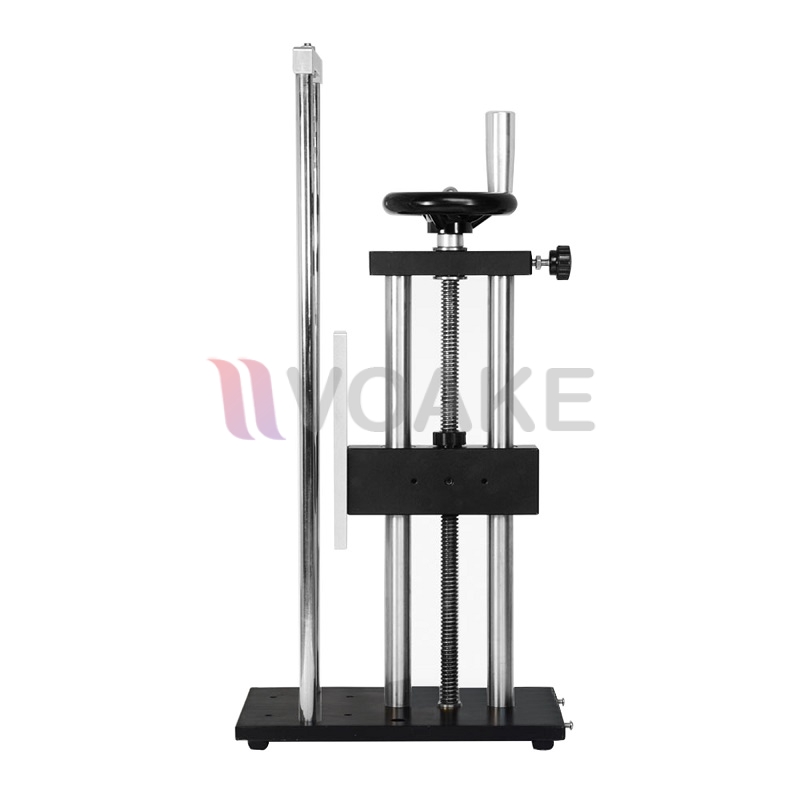

hook. When connecting, the position of the Sliding Block can be adjusted by rotating
the Rotation Handle. When the Rotation Wheel is rotated clockwise, the Sliding
Block moves upward; when the Rotation Wheel is turned counterclockwise, the Sliding Block moves downward.
3-4 By rotating the Rotation Handle, pulling force of the measured connector under various state can measured.
3-5 To measure the pushing force of the connector, simply change the hook to the corresponding connector.
แบรนด์สินค้า LANDTEK รุ่น FMS-1
