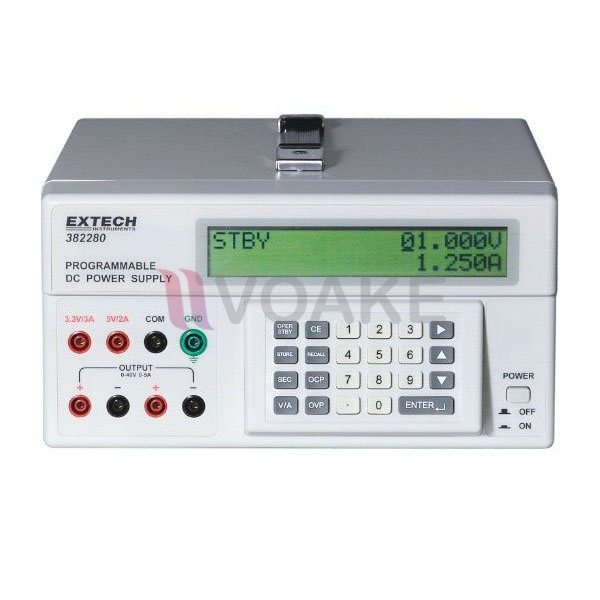

Extech 382280 Programmable 200W DC Power Supply

฿22,900.00

หรือ
QR Code

Programmable Voltage Output 0.000 to 40.000VDC
Programmable Current Output 0.000 to 5.000ADC
เลือก constant Voltage หรือ Current modes
ความละเอียดสูง (1mV และ 1mA)
บันทึกข้อมูลได้ 200 ข้อมูล
จอแสดงผลแบบ LCD พร้อมแบคไลท์

ยี่ห้อสินค้า (Brand) ของสหรัฐอเมริกา
รหัสสินค้า: 382280 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์
ไฟล์ข้อมูลสำหรับดาวน์โหลด

รายละเอียดเพิ่มเติม

คุณสมบัติของ Extech 382280 Programmable 200 Watt DC Output Power Supply

  • ความละเอียดสูง (1mV และ 1mA)
  • บันทึกข้อมูลได้ 200 ข้อมูล
  • จอแสดงผลแบบ LCD พร้อมแบคไลท์
  • Programmable Voltage Output 0.000 to 40.000VDC
  • Programmable Current Output 0.000 to 5.000ADC
  • เลือก constant Voltage หรือ Current modes
  • Auto output of up to 200 steps with programmable Voltage, Current and time
  • 0 to 60 second programmable overload delay timer
  • High stability with low ripple and noise
  • Bi-directional PC interface commands allow setup and readback using Windows® HyperTerminal or similar PC communications programs

จอแสดงผล แบบ Dot Matrix (2 บรรทัด) พร้อมแบคไลท์
Programmable Voltage Output 0.000 to 40.000VDC
Programmable Current Output 0.000 to 5.000ADC
ควาละเอียด 1mV; 1mA
Fixed Outputs 5V (2A) and 3.3V (3A)
หน่วยความจำ 199 locations
Accuracy Adjustable Voltage 0.05% ±9mV
Adjustable Currrent 0.2% ±9mA
Fixed 5V ±0.25V; Fixed 3.3V: ±0.16V
Response Time < 150 ms
Temperature Coefficient < 100ppm /°C
Load Regulation < 1mV / Amp
Line Regulation No effect if line voltage is within 90V and 130V for 115V power (200V to 240V for 220V power).
Ripple and Noise (0 – 40V, 0 – 5A) v 3mVrms (C.V.) < 3mArms (C.C.) (5V/2A, 3.3V/3A) 10mVrms - 20mVrms
Open Circuit (OCP) detection Current > 0.05A
แหล่งพลังงาน 110/220VAC 50/60Hz
ขนาดเครื่อง 310 x 250 x 135 มิลลิเมตร
น้ำหนัก 3.8 กิโลกรัม
