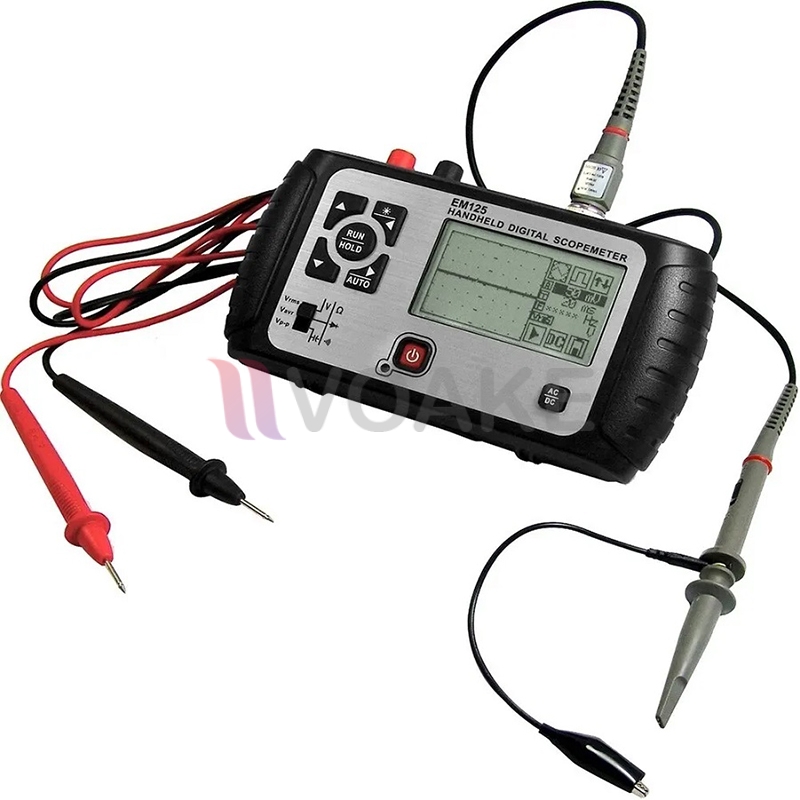

All-sun รุ่น EM125 ออสซิลโลสโคป (25MHz) และดิจิทัลมัลติมิเตอร์

฿3,990.00

หรือ
QR Code

ยี่ห้อสินค้า All-sun รุ่น EM125
Using a high-speed AD sampler to convert the input analog signal into a digital signal and displays the signal on a 128 x 64 LCD after processing the signal through a high-speed CPU.
Power supplied by 1 piece 3.7V Lithium battery

ยี่ห้อสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: EM125 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง Kerry หรือ ไปรษณีย์

รายละเอียดเพิ่มเติม

ข้อมูลทางเทคนิคของ All-sun EM125 Oscilloscope
ออสซิลโลสโคป
Bandwidth(-3dB) :25MHz
Sample: Max sample: 100MSa/S
Channel: 1
Couple: AC, DC
Rising time: < 17.5 nS
Input independence : 1MO,=20pF
Max input voltage : 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC
Vertical resolution: 8bit
Vertical sensitive : 50mV/div-20V/div
Horizontal resolution: 10nS/div
Horizontal sensitive : 10nS/div -5S/div
Depth-sampling: 0.1K/Channel
Trigger mode: AUTO, Rising edge, falling edge

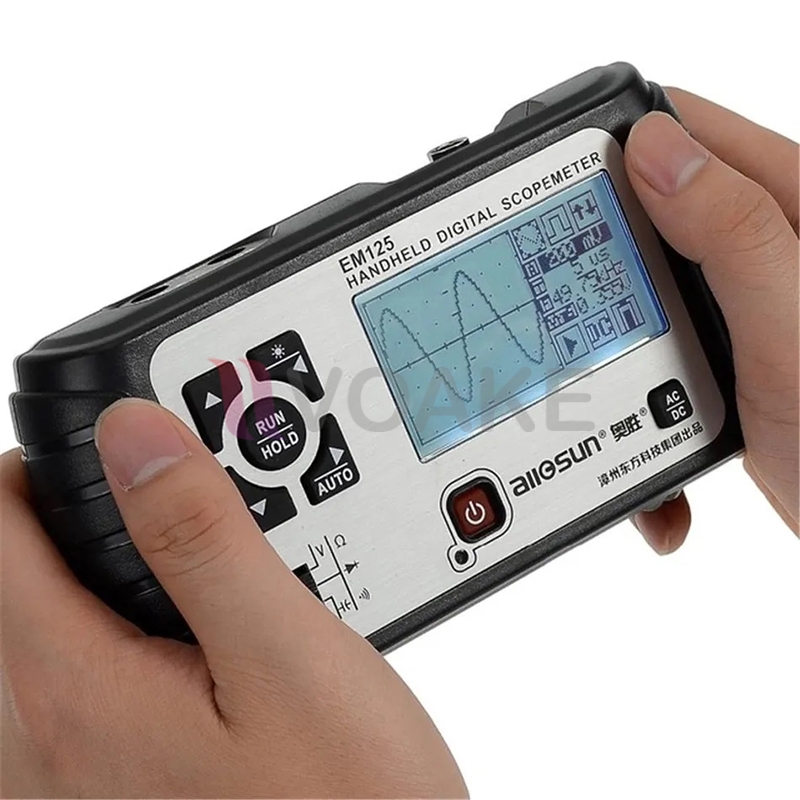

Screen size : 68mm(horizontal) x 38mm(vertical); backlight : LED

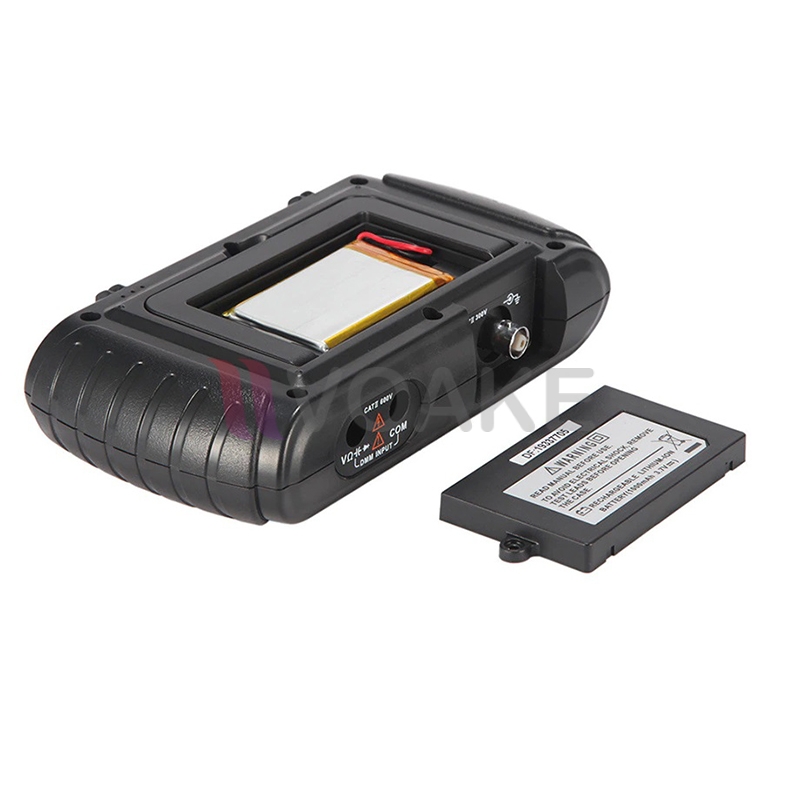

Battery : 3.7V Lithium battery 1200mAH
Charger: Input : 100VAC-240VAC
Output : 5V±10%DC 1000mA

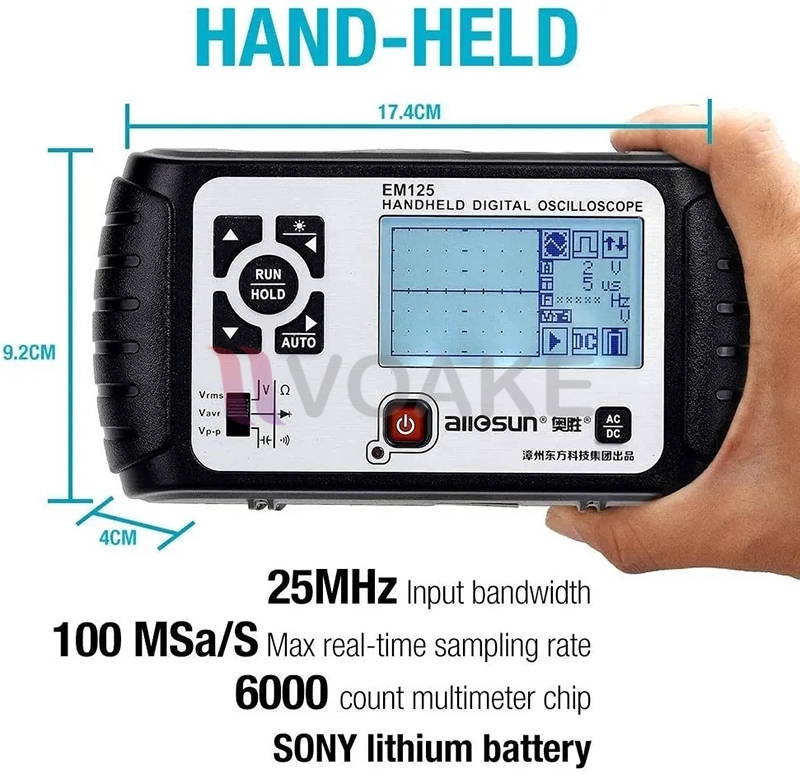

Size : 174 x 92 x 40mm

ดิจิทัลมัลติมิเตอร์
Measure count : 6000
Input : Max input voltage : 600 Vrms CAT II, 300 Vrms CAT III
On resistance : 25O(at the range of 600O), if less it beep
Diode measure : >2V shows OL(overload)<0.25 beep
Capacity measure : 6.000nF- 6mF 7range
Resistance measure : 600.0O- 60.00MO 6range
Voltage measure : 6V- 600V 3 range

คุณสมบัติ
ยี่ห้อสินค้า All-sun รุ่น EM125
It uses a high-speed comparator to get a good edge trigger for a steady display, which is good for observation.
Its mustimeter part uses a dedicated, 6000-count chip, which can provide a higher precision.
It uses a high-speed AD sampler to convert the input analog signal into a digital signal and displays the signal on a 128 x 64 LCD after processing the signal through a high-speed CPU.
Power supplied by 1 piece 3.7V Lithium battery
