รายละเอียดเพิ่มเติม
ข้อมูลทางเทคนิคของเครื่องวัดน้ำยาแอร์รั่ว ELITECH ILD-300
ตรงตามมาตรฐาน SAE J1627, SAE J2791, SAE J2913; EN14624: 2012; CE certification
หลักการทำงานของเซนเซอร์แบบ: Infrared Spectrum Absorption
อายุการใช้งานเซนเซอร์: 10 ปี
Sensitivity: Max 4g/Yr
โหมดแจ้งเตือน: แจ้งเตือนด้วยแสงและเสียง
จอแสดงผล TFT LCD display
ปิดเครื่องอัตโนมัติ: 10 minutes without operation
แบตเตอรี่: built-in rechargeable lithium battery 3.7V 3000mAh
ช่วงอุณหภูมิและความชื้นที่เครื่องทำงานได้ดี: -10°C – 52°C relative humidity (50%~85%RH)
น้ำหนัก 415 กรัม
ขนาดเครื่อง 201mm*86mm*38mm
รายละเอียด

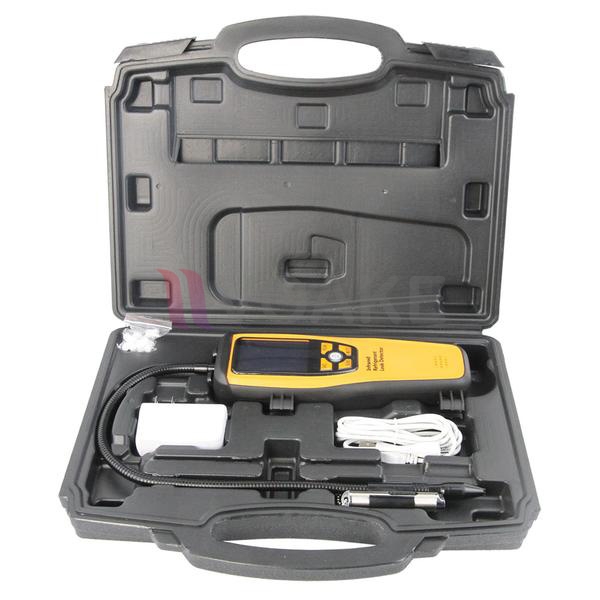

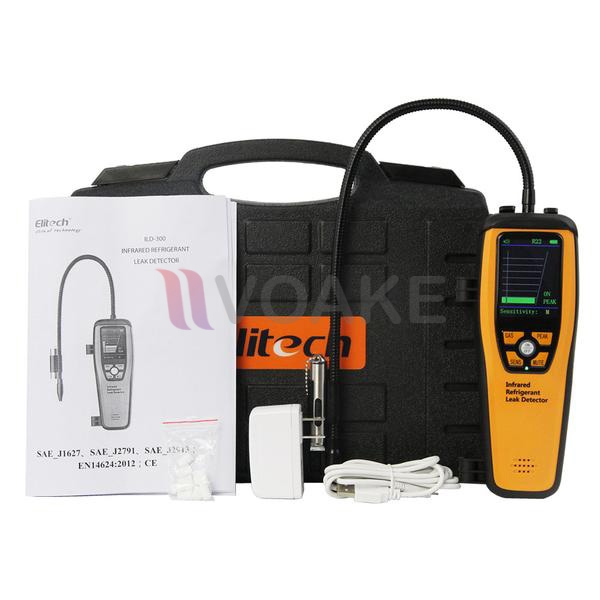

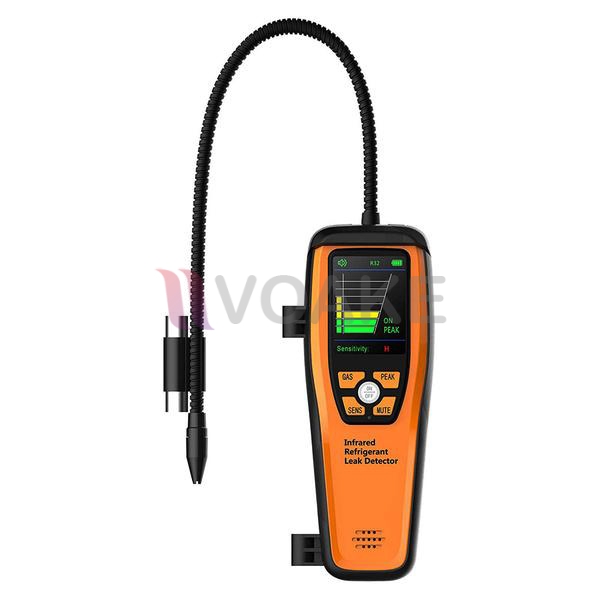

ยี่ห้อสินค้า ELITECH รุ่น ILD-300
Respond to all refrigerants within one second: It triggers on R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs, and blends.
Up to 10 years’ Sensor Life: Elitech self-developed this innovated sensor that enormously extends its senor life up to 10 years; and also a much more precise result on all halogenated refrigerants than the traditional corona and heat-diode sensors.
3 Sensitivity Levels: High/Medium/Low; With a maximum sensitivity up to 0.14oz/yr
Refrigerants Selectable: GAS button allows you to select the corresponding refrigerants per different leakage sources, professional users’ ideal choice
Peak Function: PEAK button allows you to mark the maximum leakage value during measurements for further usages.
Safe & Reliable: Strong anti-interference and meets EN14624,SAE-162,SAE-2791 and SAE-2913 standards
ก๊าซที่สามารถวัดได้
All halogenated (contains Chlorine of Fluorine) refrigerants
CFCs e.g.R12, R11,R500,R503 etc. HCFCs e.g. R22,R123, R124,R502 etc. HFCs e.g. R134a, R404s, R125 etc.
Blends such asAZ-50. HP62. MP39 etc.
Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated carrier gas).
Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine, and bromine (halogen gases).
Detect cleaning agents used in dry cleaning applications such as perchloroethylene.
Detect halogen gases in fire-extinguishing system
